Part Number: 18T5AQE / Vendor ID Number: 1128931 / Custom:
GCMN5004-GF-AC5015S

GCMN5004-GF-AC5015S
by Sumitomo

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview

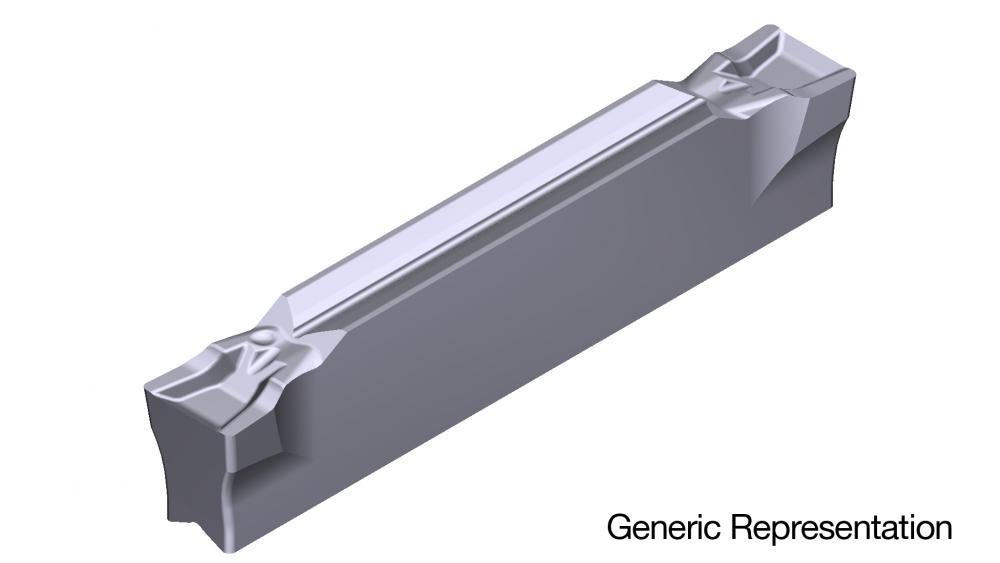

GCMN5004-GF, Grade AC5015S, 5mm Groove Width, Carbide Grooving Insert
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Maximum Depth of Cut:
Hand of Holder:
Head Length (mm):
Additional options that would change other selections
Insert Width (Decimal Inch):
Additional options that would change other selections
Specific Products:
Technical Details
Details
Coating:
Absotech
Coating Process:
PVD
Insert Hand:
N
Insert Material:
Carbide
Maximum Depth of Cut:
1
Primary Workpiece Material:
M, K, S
Series:
GND
Chip Breaker:
GF
Cutting Width:
0.1969
Cutting Width-2:
5
EDP No.:
18T5AQE
Height:
0.1614
Insert Holding Method:
Clamp
Insert Holding Method:
Clamp
Insert Thickness:
0.1614
Insert Thickness-2:
4.1
Manufacturer Grade Identification:
AC5015S
Maximum Depth of Cut-2:
25
Nose Radius:
0.0157
Nose Radius-2:
0.4
Product Code - ANSI:
GCMN5004-GF-AC5015S
Relief Angle:
7
Secondary Workpiece Material:
M, K, S
Standard designation of the grade, main applicatio:
M, K, S
Manufactured By:
Sumitomo
