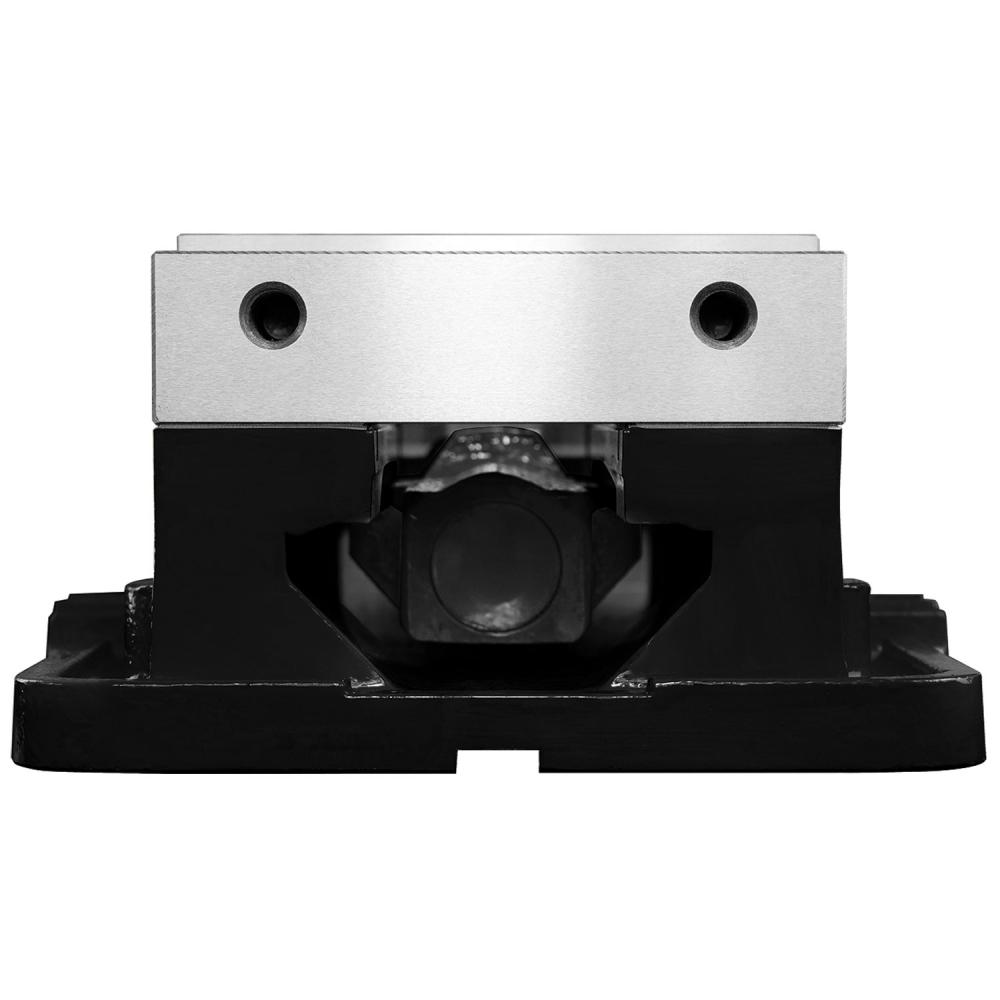

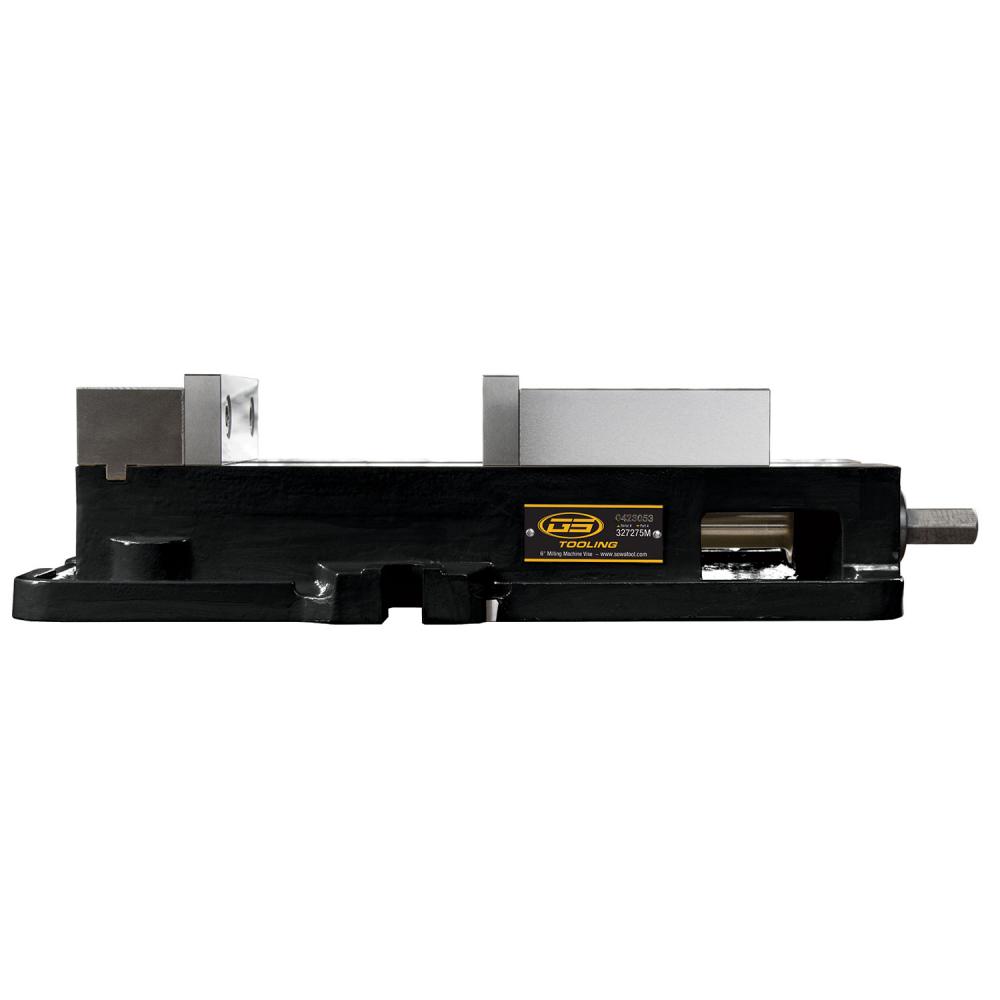

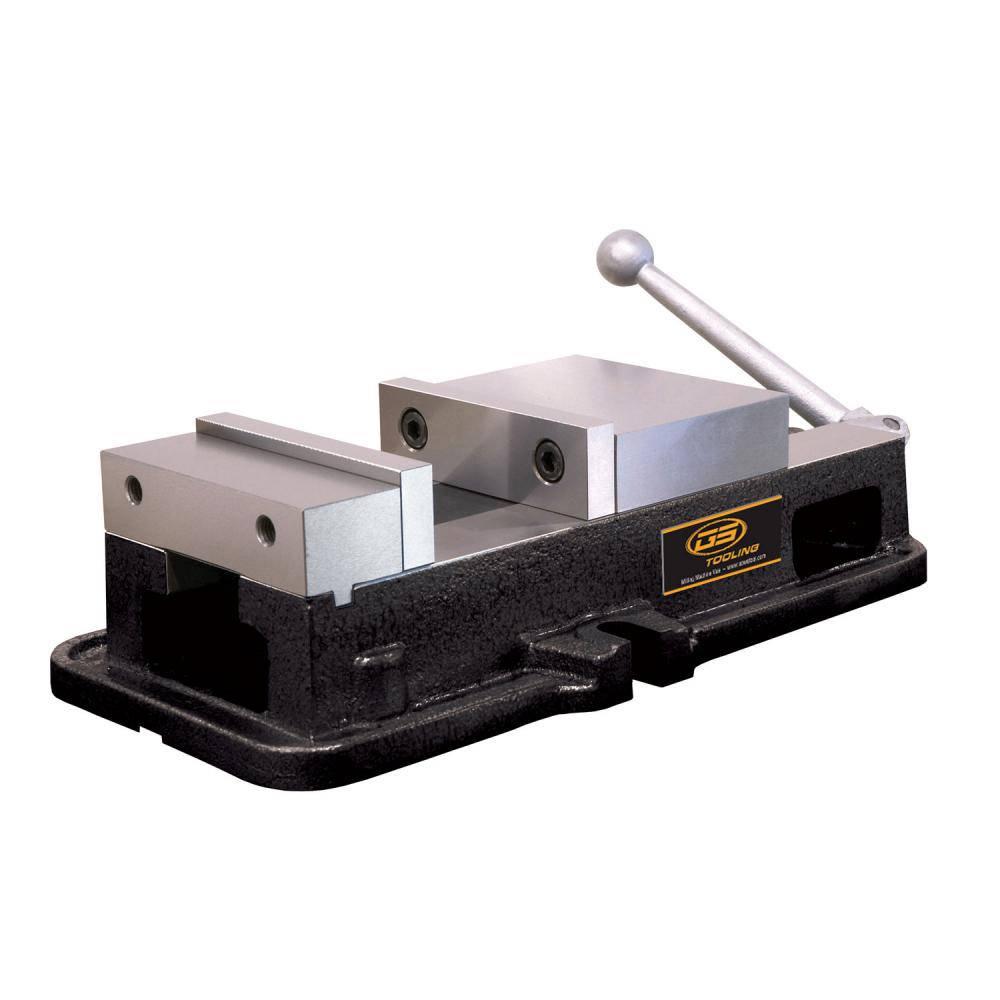

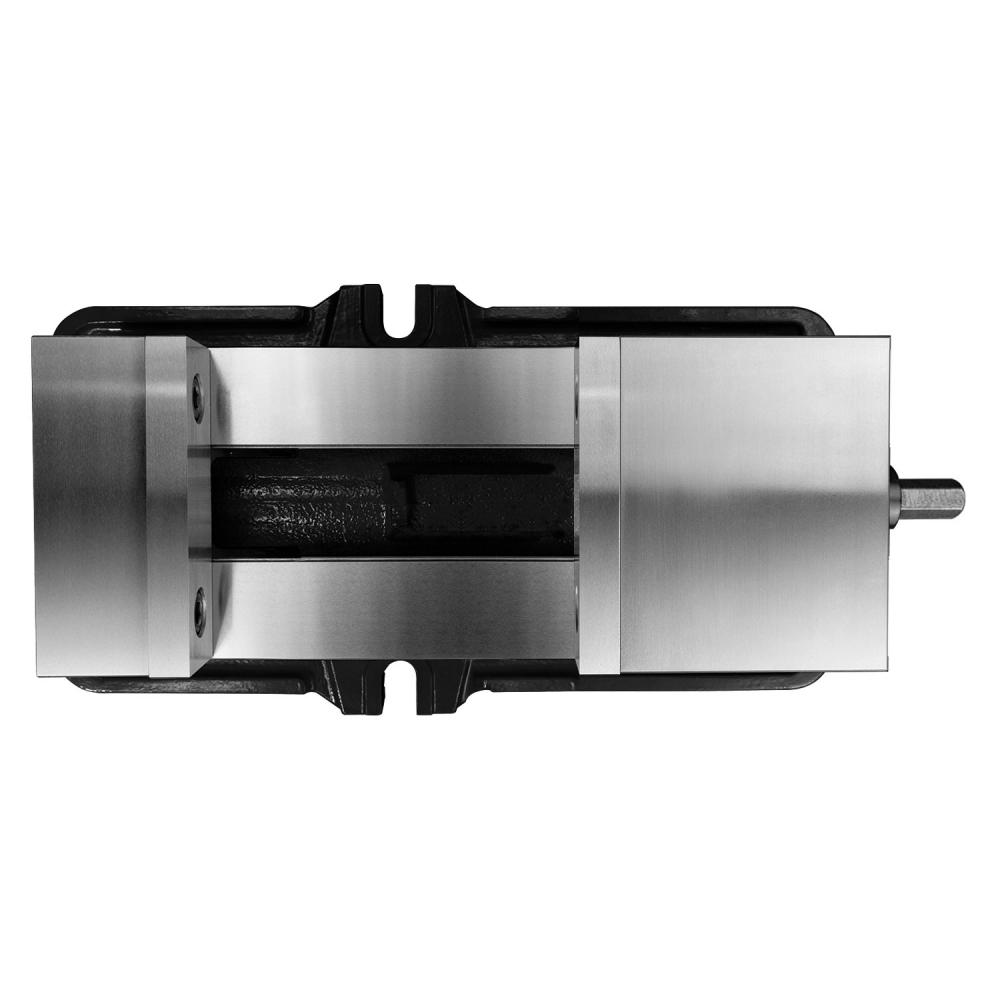

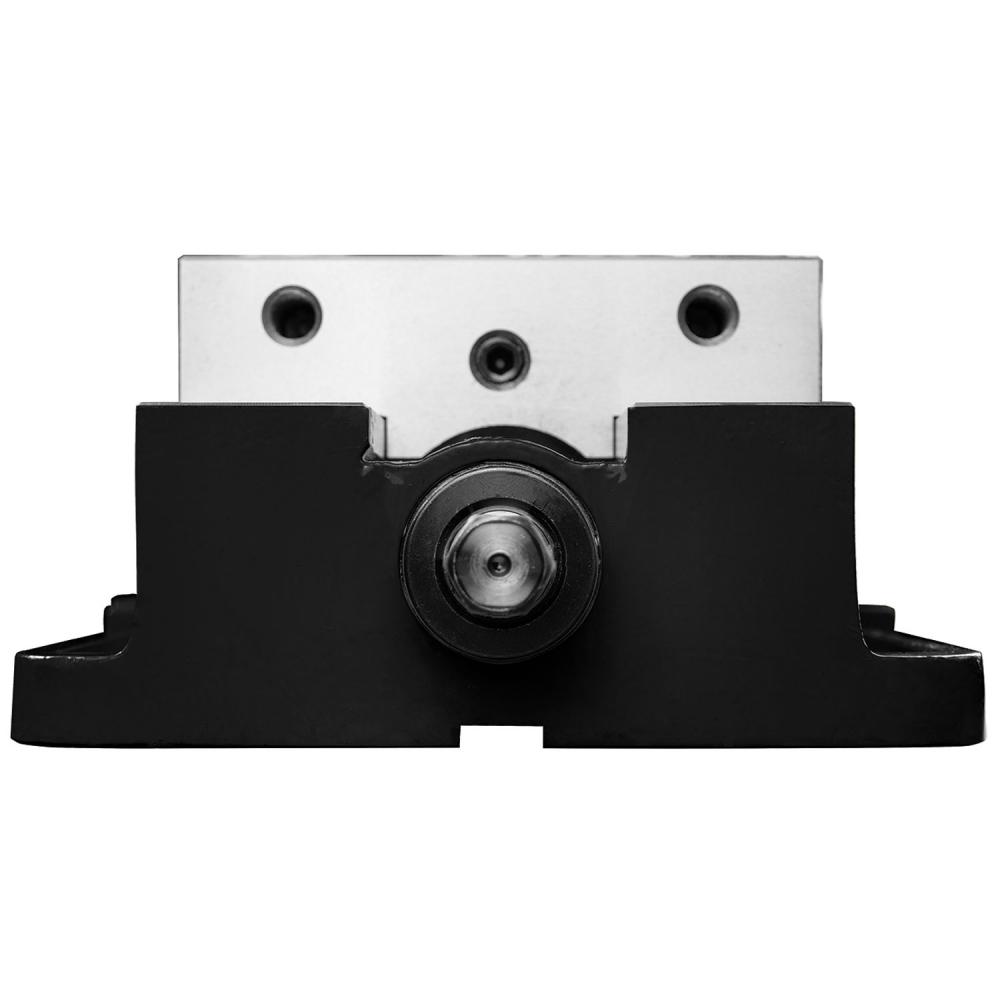

6" x 7.5" Precision Milling Machine Vise

by Sowa Tool

• Brand: GS Tooling
• Operation Type : Manual
• Jaw Height (Decimal Inch) : 1.77
• Model Number : GS675
• Overall Length (Decimal Inch) : 17.2
• Base Height (Decimal Inch) : 2.875
• Overall Width (Decimal Inch) : 9.13
• Overall Height (Decimal Inch) : 4.6

• Jaw Width (Inch): 6"
• Orientation Type: Horizontal
• Number of Stations: 1
• Base Motion Type: Stationary
• Jaw Opening Capacity (Decimal Inch): 7.5"
• Vises are Matched
• An integral key and large fasteners reduce deflection by 50%
• 4 jaw plate positions allow extra capacity with the jaw plates in the outside position
• The swivel base is graduated 360º in one degree increments
• Chip cover protects leadscrew from damage
• The quality movable jaw does not lift off the bed, and the deflection of the stationary jaw is minimized
