MIDLAND INDUSTRIES 2405 37 deg JIC Male Flared FNPT Steel Straight Connector
by Midland Industries

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

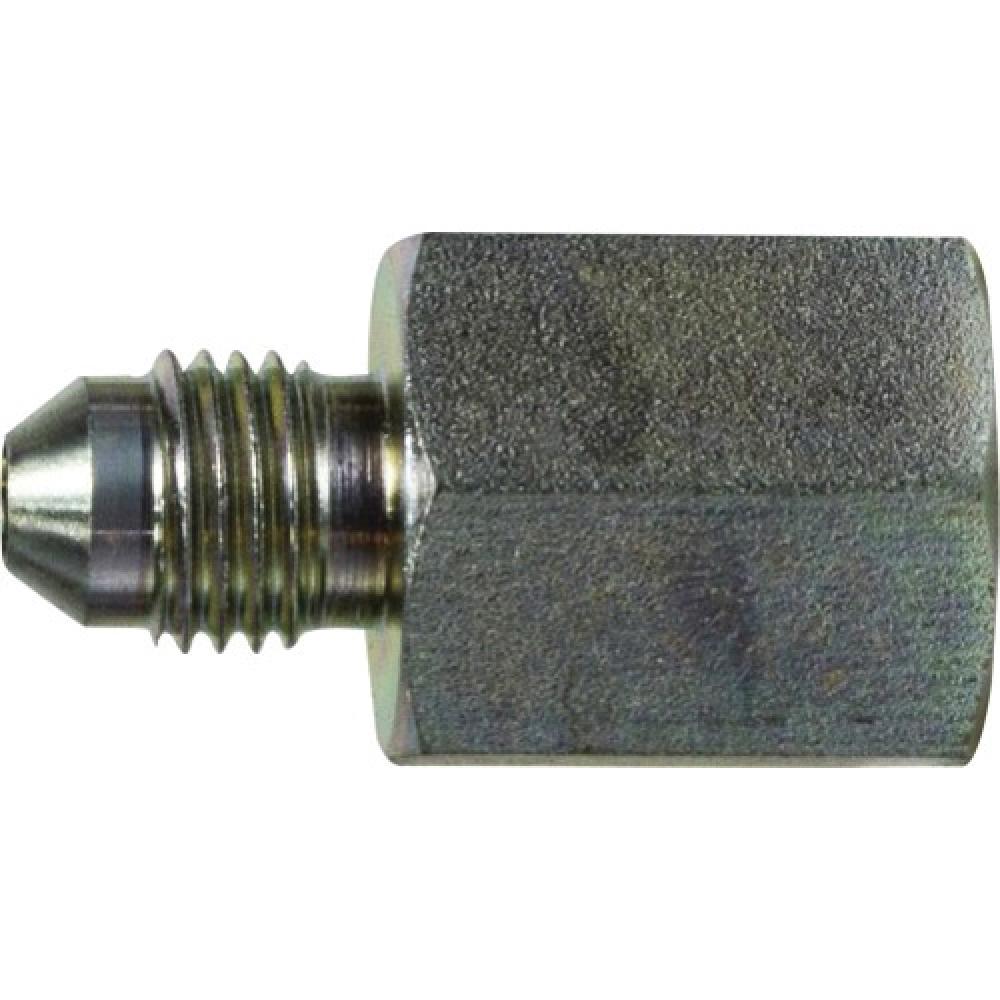

MIDLAND INDUSTRIES 24052424 Straight Connector, 1-1/2 in 37 deg JIC Male Flared x 1-1/2 in FNPT, Steel

MIDLAND INDUSTRIES Straight Connector, Connection Size 1: 1-1/2 in, Connection Type 1: 37 deg JIC Male Flared, Connection Size 2: 1-1/2 in, Connection Type 2: FNPT, Steel, 1-7/8-12 Thread, Maximum Operating Pressure: 2000 psi

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Info & Guides

PDF

Technical Details

Details

Material:

Steel

Thread Size:

1-7/8-12

BRAND NAME:

MIDLAND INDUSTRIES

Connection Size 1:

1-1/2in

Connection Size 2:

1-1/2in

Connection Type:

Male JIC|FNPT

Connection Type 1:

37 deg JIC Male Flared

Connection Type 2:

FNPT

Fitting Type:

Connector

INVOICE DESC:

CONNECTOR STR 1-1/2IN 37 DEG JIC MFLRD

Material Construction:

Steel

Maximum Operating Pressure:

2000psi

MOBILE DESC:

MIDLAND INDUSTRIES, Straight Connector, 24052424, 1-1/2in, FNPT

PRODUCT CODE:

24051012

STANDARD APPROVALS:

SAE J514

VOLUME:

145.631cu-in

Manufactured By:

Midland Industries
