Part Number: TLB10135 / Vendor ID Number: 10831 / Custom:
KYOCERA Precision Tools TLB10135

KYOCERA Precision Tools TLB10135
by KYOCERA Precision Tools

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview

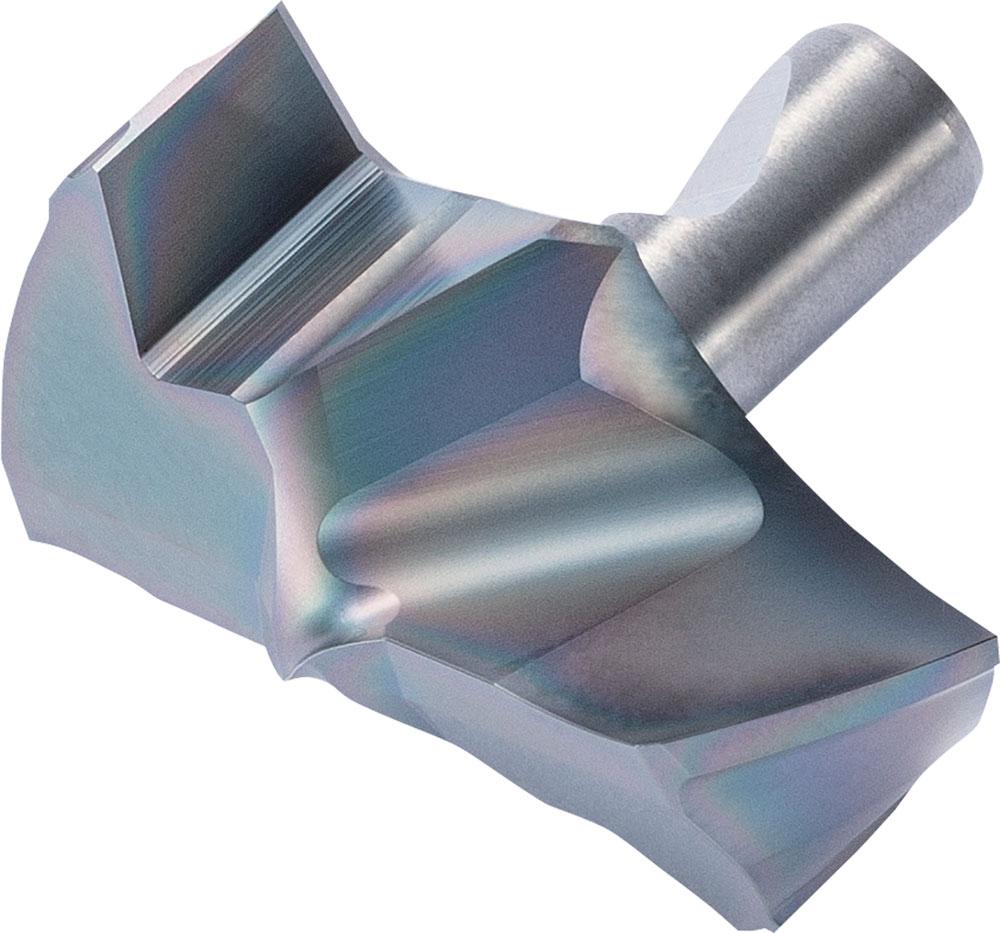

Kyocera DA 1000MFTP PR1525 Grade PVD Carbide, Replaceable Drill Tip
Kyocera DA 1000MFTP PR1525 Grade PVD Carbide, Replaceable Drill Tip with a 0.3937" (10.00mm) Cutting Diameter, Flat Bottom / Counterboring, Right-Hand Drilling Insert for (K) Cast Iron (DRA Magic Drill Series)
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Chipbreaker:
Primary Workpiece Material:
Additional options that would change other selections
Specific Products:
Info & Guides
PDF
PDF
Technical Details
Details
Category:
Cutting Tools
Subcategory:
Inserts
Subtype:
Indexable Cutting Tools
Category Level 4:
Replaceable Drill Tips
Chipbreaker:
FTP
Coating Process:
PVD

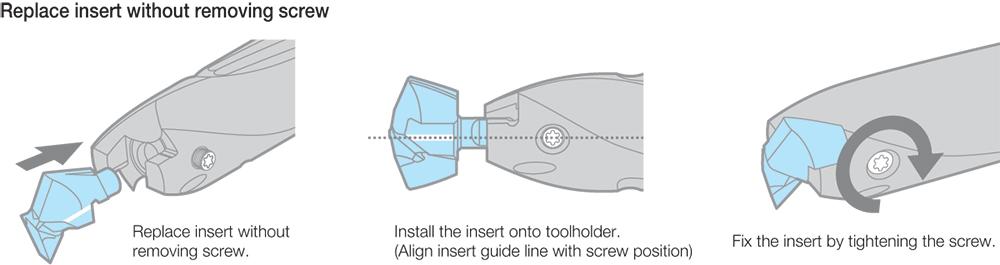

Insert Holding Method:
Screw
Material:
Carbide
Number of Cutting Edges:
2
Primary Workpiece Material:
(K) Cast Iron
Additional Manufacturer Part Number:
8858849
ANSI Part Number:
DA1000MFTPPR1525
Application:
Drilling
California Prop 65 Item:
View
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Discount Category Description:
Carbide / Cermet
ECCN:
EAR99
Feature 1:

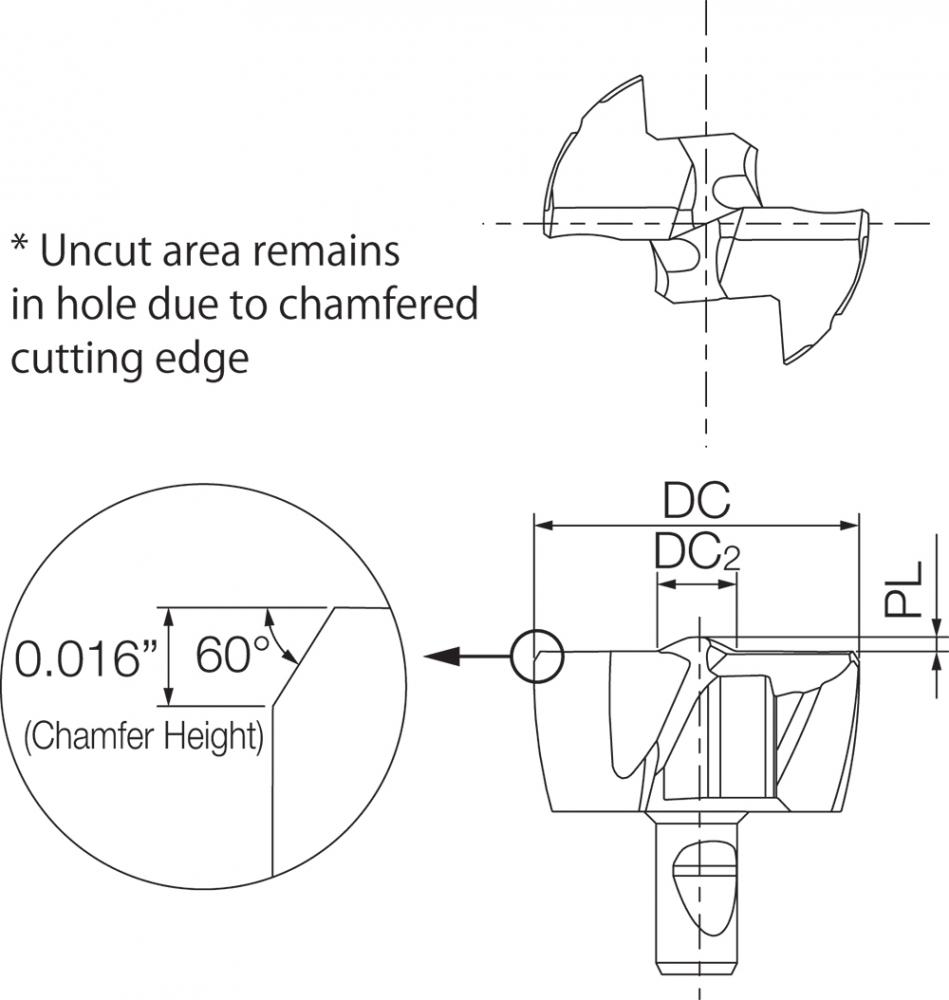

Flat Bottom / Counterboring
Feature 2:
Pilot Point Geometry and Double Margin for Improved Hole Accuracy
Feature 3:
Reduced Burr Formation with Large Helix Angle and Corner Chamfer
Feature 4:
Excellent Chip Evacuation with Large Groove and Cutting Edge Angle for Chip Thinning
Hand:
Right-Hand
Harmonized Code:
8209.00.0030
Insert Grade:
PR1525
Insert Size:
1000
ISO Part Number:
DA1000M-FTP
Material Group / Grade:
PR1525
Min Order Qty:
1
Origin:
JPN
Pack Height:
0.669
Pack Length:
2.559
Pack Width:
1.772
Product URL:
https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8858849
Series Description:

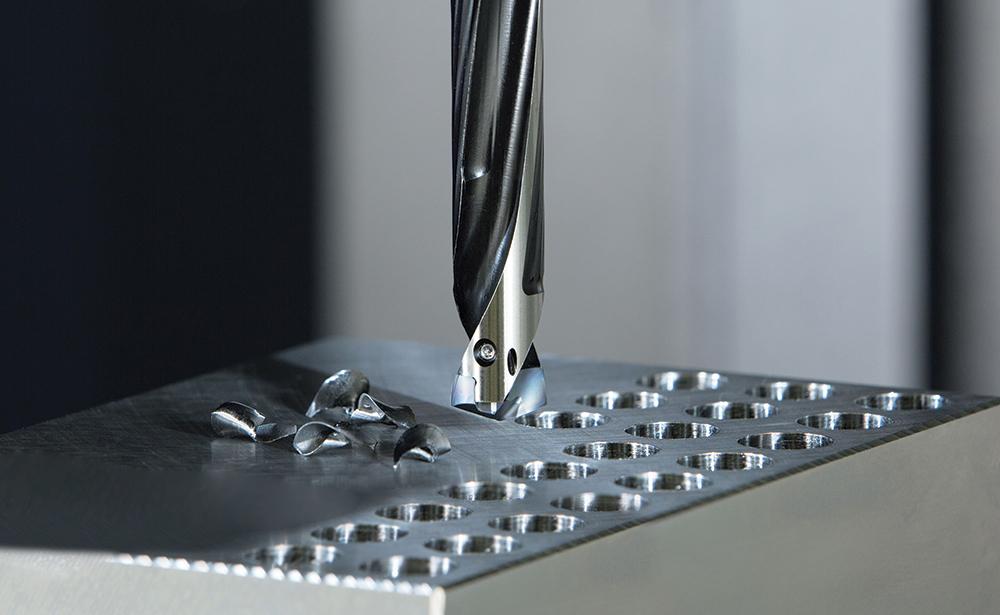

DRA Magic Drill
Series.1:
DRA
Shipping Weight:
0.0336
Tool Style:
DA
UNSPSC:
23242107
UNSPSC Title:
Insert Carbide
Video 1:
https://www.youtube.com/watch?v=nvDoLQBQyJY
[DCN] Cutting Diameter Minimum (Decimal Inch):
0.3937
[DCN] Cutting Diameter Minimum (mm):
10.00
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.3937
[DCX] Cutting Diameter Maximum (mm):
10.00
[DC] Cutting Diameter (Decimal Inch):
0.3937
[DC] Cutting Diameter (mm):
10.00
Manufactured By:
KYOCERA Precision Tools
