Part Number: 1545636 / Vendor ID Number: 1128801 / Custom:

KMT-1545636

KMT-1545636
by Kennametal

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

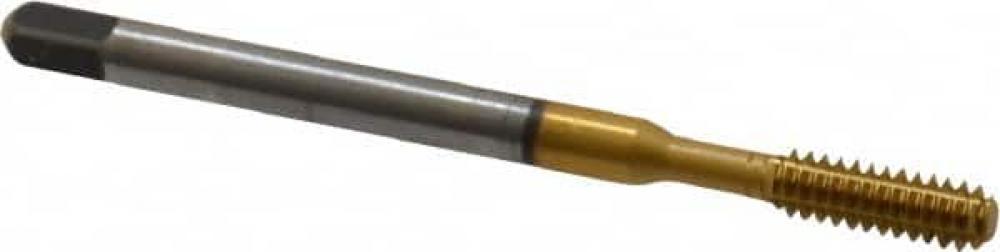

TAP BOTM THRD FORM #6-32NC H3 TN

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Technical Details

Details

Category:

Threading

Subcategory:

Taps

Subtype:

Form Taps

Coating:

TiN

Finish/Coating:

TiN

Neck Length (Decimal Inch):

0.3125

Neck Length (mm):

7.938

Overall Length (Decimal Inch):

2

Overall Length (mm):

50.8

Square Length (Decimal Inch):

0.1875

Square Length (mm):

4.763

Thread Length (Decimal Inch):

0.375

Thread Length (mm):

9.525

Adapter Style Machine Side:

Cylindrical with Drive Square

Adapter Type Machine Side:

Cylindrical

Coolant Entry Style:

No Coolant

Coolant Exit:

No Coolant

Engineering Tool Family:

KHSST HAND

Hand of Tool:

R - Right

Helix Hand:

N - Neutral/Straight Flute

ISO Catalog Number:

KHSST09316

MAR_PLATFORM_KMT:

General Purpose Taps

Number of Lube Grooves:

4

Number of Teeth Chamfer:

2

Plug Style:

Full Bottom 1-2 Pitch Form E

Tap Application:

2 - Blind Hole

Tap Design:

S - HSS

Tap Pitch Diameter Limit:

H3

Tap Type - Marcom Calc:

Forming Tap

Type of Thread:

NC/UNC/UNJC

[CUBMS]Unit of Tool:

IN - Inch

[CUBWS]Units of Tool (Extract):

IN - Inch

[D1-TDZ]Thread Dia Size:

6 - 32

[D1]Thread Dia Inch:

0.1380

[D1]Thread Dia Metric:

3.5052

[D]Adapter/Shank/Bore Dia Inch:

0.1410

[D]Adapter/Shank/Bore Dia mm:

3.5810

[L2]Useable Length Inch:

0.6850

[L2]Useable Length Metric:

17.3990

[L3]Thread Length Inch:

0.3750

[L3]Thread Length Metric:

9.5250

[L5]Length of Square Inch:

0.1875

[L5]Length of Square Metric:

4.7630

[LN]Neck Length Inch:

0.3125

[LN]Neck Length Metric:

7.9380

[L]Overall Length Inch:

2.0000

[L]Overall Length Metric:

50.8000

[TPI]Threads Per Inch:

32.0000

Manufactured By:

Kennametal
