Part Number: 313614 / Vendor ID Number: 10677 / Custom:

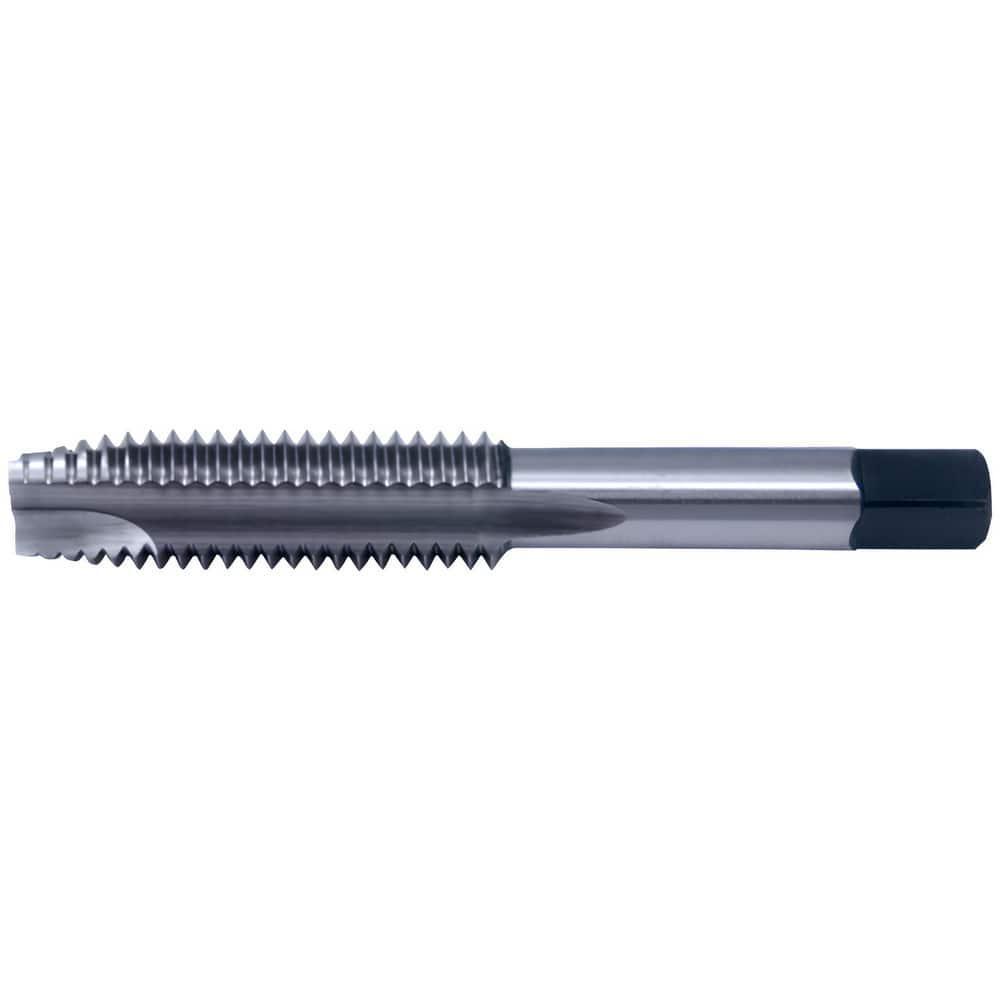

Spiral Point Plug Tap

Spiral Point Plug Tap
by Greenfield

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Technical Details
Details
Category:
Threading
Subcategory:
Taps
Subtype:
Spiral Point Taps
Flute Type:
Straight
Overall Length (Decimal Inch):
2.125
Shank Size:
0.168
Square Size (Decimal Inch):
0.25
Tap Type:
Machine Tap
Brand Name:
Greenfield
Chamfer:
Plug
Coating/Finish:
Bright
Cutting Direction:
Right
Diameter:
0.158
Diameter (Decimal Inch):
0.158
Diameter (Decimal):
0.16
Diameter (Metric):
4.01
ECCN:
EAR99
Hand Of Cut:
Right
Hand Of Spiral:
Right
Measurement System:
Metric
Number of Flutes.1:
2
Overall Length (Decimal):
2.13
Pack Qty:
1
Package Type:
Snap Pack
Set:
No
Shank Configuration:
Straight w/ Square
Shank End Feature:
Square
Shank Size (Decimal):
0.17
Shank Square Length:
0.25
Shank Square Length (Decimal):
0.25
Shank Square Width:
0.131
Shank Square Width (Decimal):
0.13
Surface Condition:
Bright
Tap Blank Construction:
USCTI Table 302
Tap Chamfer:
Plug
Tap Construction:
Standard
Tap Ground Threads:
Yes
Tap Interrupted Thread:
No
Tap Limit:
D11
Tap Spiral Point:
Yes
Tap Style:
Spiral Point Tap
Tap Truncated Threads:
No
Thread Creation:
Thread Cutting
Thread Form:
Metric
Thread Length:
0.75
Thread Length (Decimal):
0.75
Thread Limit:
D11
Thread Pitch:
0.7
Thread Standard:
Metric
Tool Size:
M4x0.7
Tool Type:
Tap
Unit of Measure:
Metric
UNSPSC:
27112806
Manufactured By:
Greenfield
