Part Number: 1200S12 / Vendor ID Number: 1152441 / Custom:

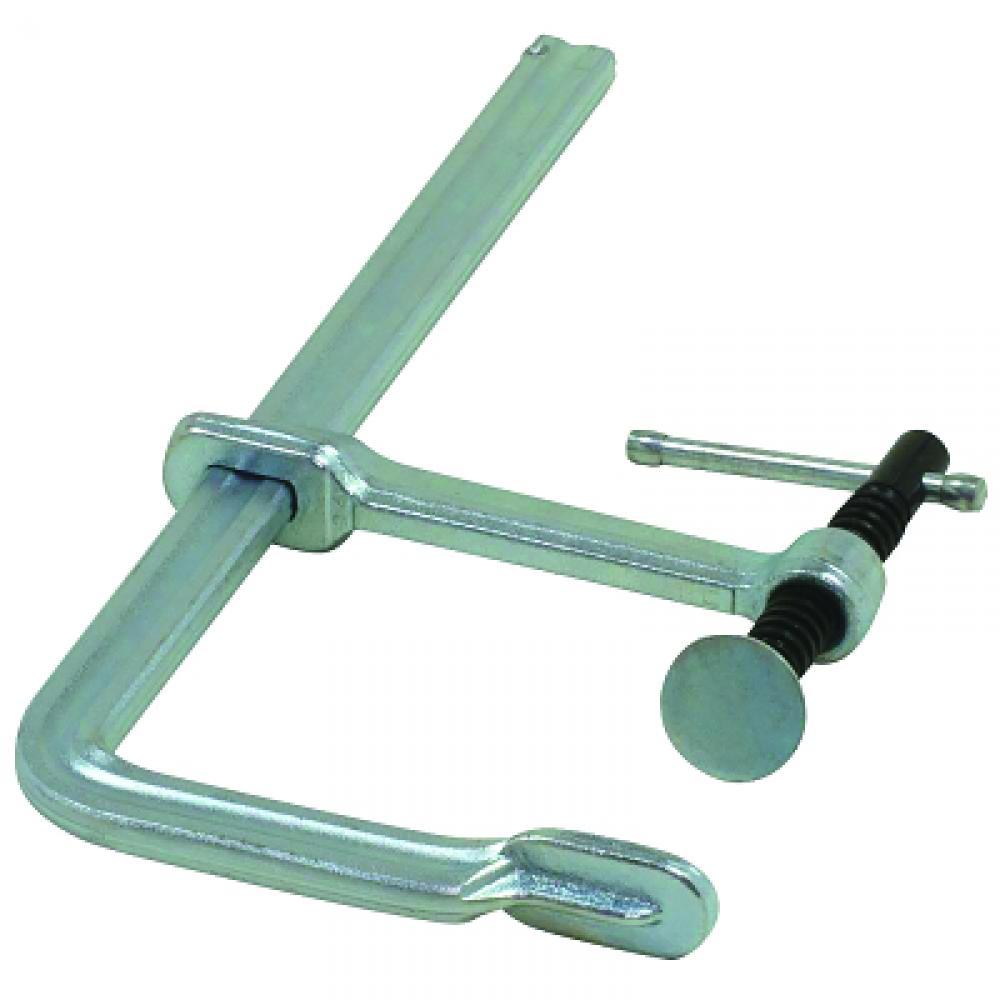

BESSEY Sliding Arm Bar Clamps

BESSEY Sliding Arm Bar Clamps
by Bessey

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
Sliding Arm Bar Clamp, 12 in Capacity, 5-1/2 in Throat Depth, 1320 lb
The sliding arm is designed with a rail, pressure plate and sliding jaw for fast clamping action|Replacement arms, spindles and snap on pressure pads are available for many shop floor series steel clamps|Clamp rail and fixed jaw are created from a single piece of BESSEY cold drawn steel|
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Additional Information
Clamp rail and fixed jaw are created from a single piece of BESSEY cold drawn steel
Replacement arms, spindles and snap on pressure pads are available for many shop floor series steel clamps
The sliding arm is designed with a rail, pressure plate and sliding jaw for fast clamping action
Technical Details
Details
Category:
Clamping, Positioning, Workholding
Subcategory:
Clamps
Subtype:
Bar, Pipe and L-Clamps
B.T.N.A. Cat #:
1200-S12
Bar Thickness:
7/16 in
Bar Width:
1-3/32 in
Body Material:
steel
Brand:
BESSEY
Brand owner GLN:
4008158000008
Brand owner name:
BESSEY® Tools GmbH & Co KG
Brand URL:
www.besseytools.com
CASE GTIN (Master carton):
10788502200155
Clamping Force (Pounds):
1,320
Classification:
Bar Clamps & Spreaders
Country of Origin:
DE
Country of Origin #1:
Germany
Cube (Full Pallet, Ft^3):
29.716
Cube (Master carton, Ft^3):
0.549
Cube (Single Item in retail/shipping package, Inch:
182.95
Cube (Single Item out of box, Inches^3):
182.95
Cube(Single Item in retail/shipping package, Ft^3):
0.106
Functional Name:
All-steel sliding arm clamp
GDSN Alpha - 2 Country Code:
DE
GDSN Country Code:
276
GPC (Brick):
10003535
Gross weight (Master carton, Pounds):
42.650
Gross weight (Single Item in retail/shipping packa:
4.200
Handle length (Inches):
4.650
Handle Material:
Steel
Handle Type:
T-Handle
Height (Full Pallet, Inches):
34.500
Height (Master carton, Inches):
5.500
Height (Single Item in retail/shipping package, In:
1.500
Height (Single Item out of box, Inches):
1.500
Information owner GLN:
0788502000017
Information owner name:
BESSEY® Tools North America
Jaw width (Inches):
1.500
Keywords:
BESSEY, Bessy, Besy, Besey, clamp, all steel, light to medium duty, sliding arm
Length (Depth, Full Pallet, Inches):
31.500
Length (Depth, Master carton, Inches):
17.250
Length (Depth, Single Item in retail/shipping pack:
15.738
Length (Depth, Single Item out of box, Inches):
15.738
Load Cap. [Nom]:
1,320 lb
Manufacturer GLN:
4008158000008
Manufacturer NAME:
BESSEY® Tool
Marketing bullet point:
After bending and forming of the fixed jaw the rails are heat treated for maximum strength
Marketing bullet point-2:
Clamp rail and fixed jaw are created from a single piece of BESSEY cold drawn steel
Marketing bullet point-3:
Does the work of c-clamps … but does it 9x faster
Marketing bullet point-4:
Replacement arms, spindles and snap on pressure pads are available for many premium series all-steel bar clamps
Marketing bullet point-5:
Sliding T-bar handle
Marketing bullet point-6:
Specially hardened spindle resists weld spatter
Marketing bullet point-7:
Standard swivel pressure pads built for solid dependable performance
Marketing Paragraph:
Premium all-steel bar clamps from BESSEY® deliver uncompromising quality, patented features, durability and real-world productivity make it a must-have tool in today’s modern workshop. With clamping forces ranging from 700 lbs up to 8500 lbs virtually
National Motor Freight Classification (class):
70
National Motor Freight Classification (code):
18690000
Net weight ( Single Item in retail/shipping packag:
4.200
Net weight (Master carton, Pounds):
42.000
Nominal Capacity (Inches):
12.000
Nominal Throat Depth (Inches):
5.500
Opening Size [Max]:
12 in
Optional parts:
3101447
Optional parts-2:
VAD
Original Equipment Replacement Parts:
3006786
Original Equipment Replacement Parts-2:
3100398
Original Equipment Replacement Parts-3:
3100736
Original Equipment Replacement Parts-4:
3101188
Original Equipment Replacement Parts-5:
3101797
ORS Nasco SKU Number:
013-1200S-12
Packaging Type ( Single Item in retail/shipping pa:
Loose
Pallet GTIN (Full Pallet):
80788502200154
Pieces (Master carton quantity):
10
Product Group:
All-steel
Prop 65 Warning Label:
View
Prop 65 Warning Required:
View
Qty:
1
Quantity (Full Pallet):
380
Quantity of Master Cartons (Full Pallet):
38
Rail Dimensions (Inches):
1-3/32x7/16
Rail Dimensions (MM):
28x11
SKU Group:
BESSEY Sliding Arm Bar Clamps
Spindle (Thread Pitch):
Tr18 - 5
Spindle dia. (Inches):
0.700
Spindle Diam:
45/64 in
Supplier Company Name:
BESSEY® Tools North America
Tare weight (Master carton, Pounds):
0.650
Tare weight (Single Item in retail/shipping packag:
0.000
Taxonomy:
Bar Clamps & Spreaders
Throat Depth [Nom]:
5-1/2 in
U of M:
PC
UNSPSC:
27112133
UPC:
00788502200158
UPC/Base Unit or Each:
7 88502 20015 8
Variant:
5-1/2 x 12 inches
Width (Single Item in retail/shipping package, In:
7.750
Width (Full Pallet, Inches):
47.250
Width (Master carton, Inches):
10.000
Width (Single Item out of box, Inches):
7.750
Manufactured By:
Bessey
