Item Sales Info
Part Number: 7010045305 / Vendor ID Number: 10834 / Custom:

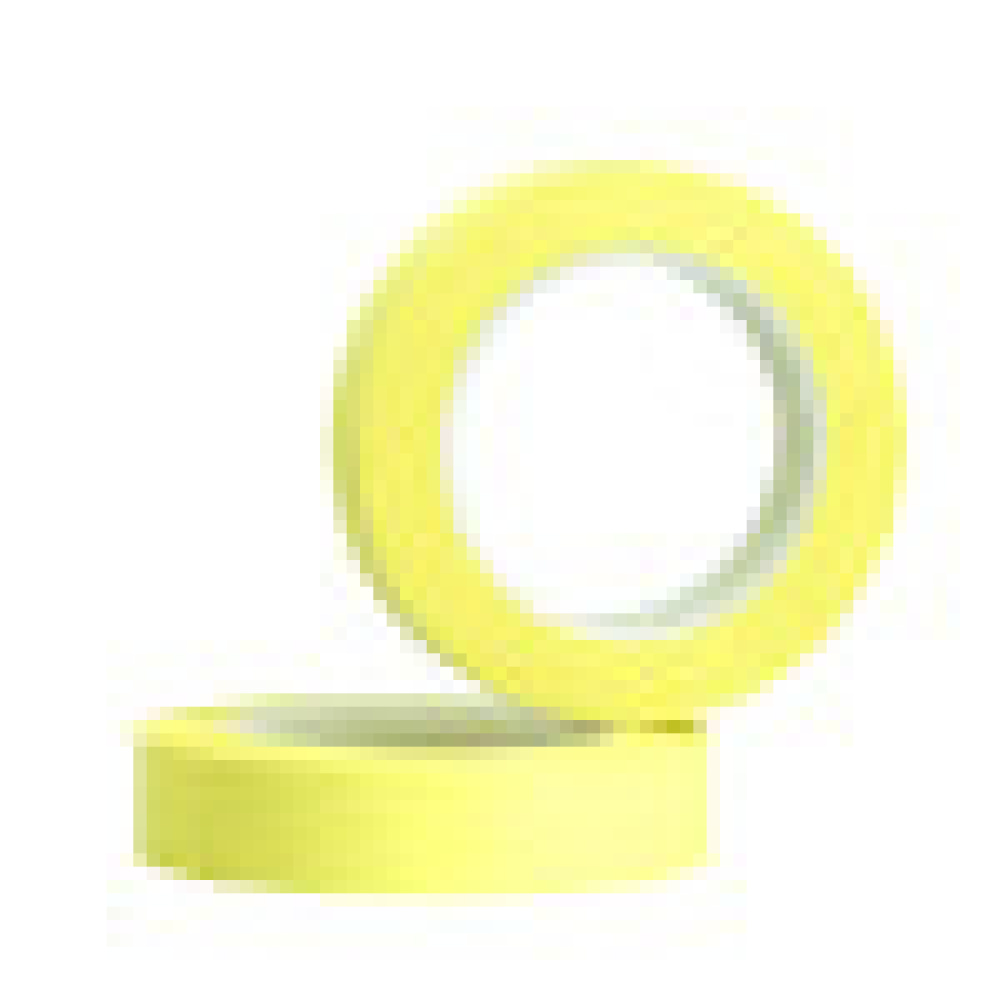

3M™ Polyester Film Electrical Tape 57, 1 in x 72 yd, Yellow, 36 Rolls/Case

3M™ Polyester Film Electrical Tape 57, 1 in x 72 yd, Yellow, 36 Rolls/Case
by 3M

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
57 TAPE 1 IN X 72 YD BULK
3M™ Tape 57 is a polyester film, electrical tape. This tape is used to insulate applications that require excellent dielectric strength. It withstands a temperature range of 32 to 266 °F (0 to 130 °C).
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Info & Guides
Document
Document
Data Sheet
Brochure
Brochure
Technical Details
Details
Adhesive Type:
Thermosetting Rubber
Backing (Carrier) Material:
Polyester
Base - Billing Unit:
ROL
Base - Item Quantity:
1
Base - Metric Gross Weight:
55.556 G
Base - Metric Length Dimension:
65.836 M
Base - Metric Width Dimension:
0.025 M
Base - Unit:
ROL
Brand:
3M™
Catalog Number:
57 1"X72YD
Country of Origin:
Mexico
Dielectric Strength:
7000.0 V
ECCN:
EAR99
Global Product Hierarchy:
Tapes > Electrical Tapes > Polyester Electrical Tapes
Harmonized Tariff Schedule Nbr:
3919102020
Legacy SKU:
80611429467
Maximum Operating Temperature (Celsius):
130.0 Degree Celsius
Maximum Operating Temperature (Fahrenheit):
266.0 Degree Fahrenheit
Minimum Operating Temperature (Celsius):
0.0 Degree Celsius
Minimum Operating Temperature (Fahrenheit):
32.0 Degree Fahrenheit
Overall Length (Imperial):
72.0 yd
Overall Length (Metric):
65.8 m
Overall Width (Imperial):
1.0 in
Overall Width (Metric):
25.4 mm
Pallet - Pallet Layer Quantity:
4
Pallet - Previous Packaging Level Unit:
BOX
Pallet - Shipping Container Per Layer Quantity:
16
Pallet - Total Unit Quantity:
2304
Part number:
57 1"X72YD
Product Color:
Yellow
SAP ID:
7010045305
SAP Shelf Life In Days:
1825
Shipper - Billing Unit:
ROL
Shipper - Customary Cubic Dimension:
1060.6785937981324 ci
Shipper - Customary Gross Weight:
4.409245243697551 lbs
Shipper - Customary Height Dimension:
9.527559055118111 in
Shipper - Customary Length Dimension:
10.551181102362206 in
Shipper - Customary Net Weight:
3.9683207193277963 lbs
Shipper - Customary Width Dimension:
10.551181102362206 in
Shipper - Item Quantity:
36
Shipper - Metric Cubic Dimension:
17381.408 CCM
Shipper - Metric Height Dimension:
24.2 CM
Shipper - Metric Length Dimension:
26.8 CM
Shipper - Metric Net Weight:
1.8 KG
Shipper - Metric Weight:
2.0 KG
Shipper - Metric Width Dimension:
26.8 CM
Shipper - Previous Packaging Level Quantity:
36
Shipper - Total Unit Quantity:
36
Shipper - Unit:
CS
Specifications Met:
RoHS 2011/65/EU
Total Tape Thickness without Liner (Imperial):
3.5 mil
Total Tape Thickness without Liner (Metric):
0.089 mm
Unit of Use - Billing Unit:
ROL
Unit of Use - Customary Cubic Dimension:
29.463301052586356 ci
Unit of Use - Customary Gross Weight:
0.12248001437943058 lbs
Unit of Use - Customary Net Weight:
0.11023113109243879 lbs
Unit of Use - Item Quantity:
1
Unit of Use - Metric Cubic Dimension:
482.817 CCM
Unit of Use - Metric Net Weight:
50.0 G
Unit of Use - Unit:
ROL
Unnamed: 108:
General purpose polyester tape with thermosetting rubber adhesive Withstands higher-temperature conditions than tapes with acetate cloth backings Conformable, exhibits excellent chemical, solvent and moisture resistance and resists cut-through and abrasion
UNSPSC Tax Code:
31200000
