Part Number: 7010370730 / Vendor ID Number: 10834 / Custom:

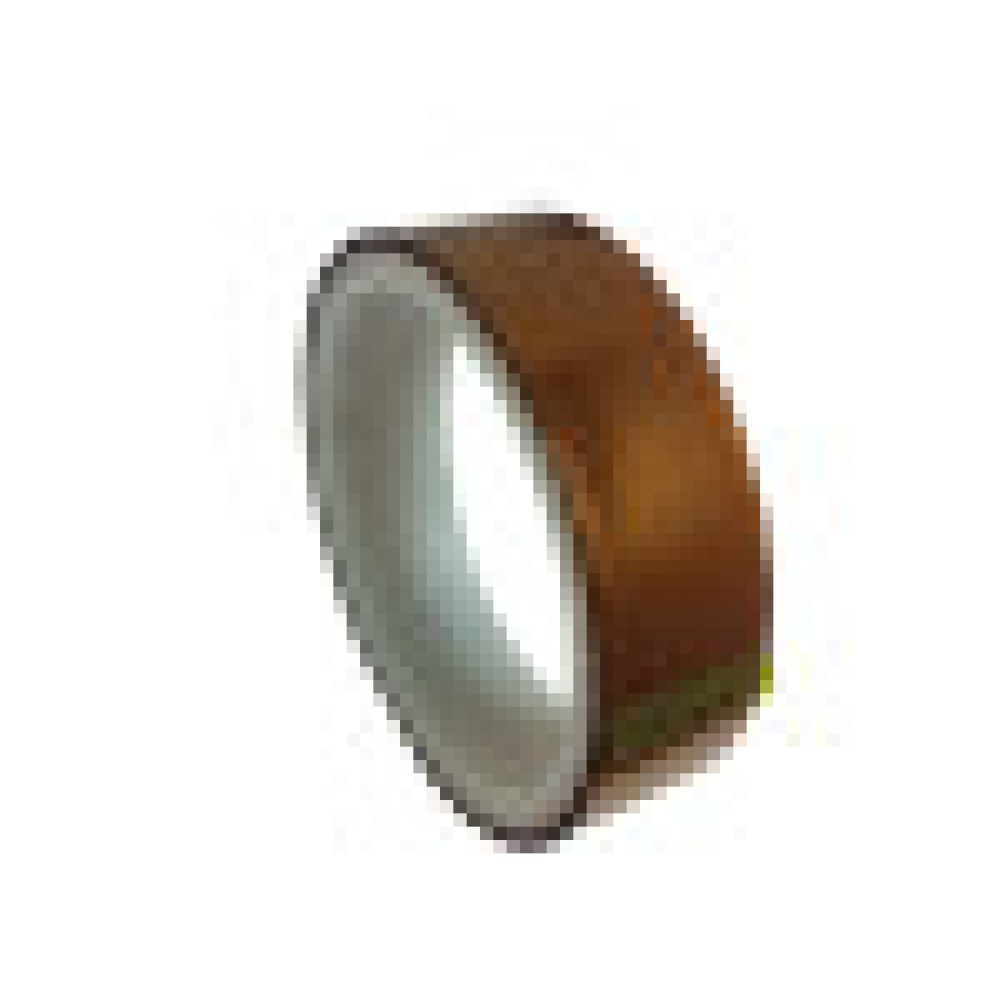

3M™ Low-Static Non-Silicone Polyimide Film Tape 7419, 480 mm x 33 m

3M™ Low-Static Non-Silicone Polyimide Film Tape 7419, 480 mm x 33 m
by 3M

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
7419 480 MM X 33 M
3M™ Low Static, Non Silicone Polyimide Film Tape 7419 with DuPont™ Kapton® polyimide film and acrylic adhesive used for PCB solder masking and other high temperature applications. Low Static.
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Info & Guides
Document
Data Sheet
Technical Details
Details
Adhesive Type:
Acrylic
Backing (Carrier) Material:
Polyimide Film
Base - Billing Unit:
ROL
Base - Item Quantity:
1
Base - Metric Gross Weight:
2.434 KG
Base - Metric Length Dimension:
33.0 M
Base - Metric Width Dimension:
0.48 M
Base - Unit:
ROL
Brand:
3M™
Catalog Number:
7419
Country of Origin:
United States
ECCN:
EAR99
Global Product Hierarchy:
Tapes > Electrical Tapes > Polyimide Electrical Tapes
Harmonized Tariff Schedule Nbr:
3919905060
Legacy SKU:
70004030303
Overall Length (Imperial):
36.0 yd
Overall Length (Metric):
33.0 m
Overall Width (Imperial):
18.898 in
Overall Width (Metric):
480.0 mm
Pallet - Billing Unit:
ROL
Pallet - Customary Cubic Dimension:
81283.6271341834 ci
Pallet - Customary Gross Weight:
271.1685824873994 lbs
Pallet - Customary Height Dimension:
40.15748031496063 in
Pallet - Customary Length Dimension:
48.031496062992126 in
Pallet - Customary Net Weight:
141.91596741364938 lbs
Pallet - Customary Width Dimension:
42.125984251968504 in
Pallet - Item Quantity:
44
Pallet - Item Unit:
RLS
Pallet - Metric Cubic Dimension:
1.332 M3
Pallet - Metric Height Dimension:
1.02 M
Pallet - Metric Length Dimension:
1.22 M
Pallet - Metric Net Weight:
64.372 KG
Pallet - Metric Width Dimension:
1.07 M
Pallet - Pallet Layer Quantity:
4
Pallet - Previous Packaging Level Quantity:
44
Pallet - Previous Packaging Level Unit:
BOX
Pallet - Shipping Container Per Layer Quantity:
11
Pallet - Total Unit Quantity:
44
Pallet - Unit:
PAL
Part number:
7419
Product Color:
Amber
Return Policy Description:
No Return
SAP ID:
7010370730
SAP Shelf Life In Days:
548
Shipper - Billing Unit:
ROL
Shipper - Customary Cubic Dimension:
1546.0409503496173 ci
Shipper - Customary Gross Weight:
5.366051461579921 lbs
Shipper - Customary Height Dimension:
8.818897637795276 in
Shipper - Customary Length Dimension:
20.905511811023622 in
Shipper - Customary Net Weight:
3.225362895764759 lbs
Shipper - Customary Width Dimension:
8.385826771653543 in
Shipper - Item Quantity:
1
Shipper - Item Unit:
RLS
Shipper - Metric Cubic Dimension:
25335.072 CCM
Shipper - Metric Height Dimension:
22.4 CM
Shipper - Metric Length Dimension:
53.1 CM
Shipper - Metric Net Weight:
1.463 KG
Shipper - Metric Weight:
2.434 KG
Shipper - Metric Width Dimension:
21.3 CM
Shipper - Previous Packaging Level Quantity:
1
Shipper - Previous Packaging Level Unit:
RLS
Shipper - Total Unit Quantity:
1
Shipper - Unit:
CS
Total Tape Thickness without Liner (Imperial):
1.8 mil
Total Tape Thickness without Liner (Metric):
0.046 mm
Unit of Use - Billing Unit:
ROL
Unit of Use - Customary Cubic Dimension:
1546.0409503496173 ci
Unit of Use - Customary Gross Weight:
5.366051461579921 lbs
Unit of Use - Customary Net Weight:
3.225362895764759 lbs
Unit of Use - Item Quantity:
1
Unit of Use - Item Unit:
RLS
Unit of Use - Metric Cubic Dimension:
25335.072 CCM
Unit of Use - Metric Net Weight:
1.463 KG
Unit of Use - Previous Packaging Level Quantity:
1
Unit of Use - Total Unit Quantity:
1
Unit of Use - Unit:
ROL
Unnamed: 108:
Specially formulated acrylic adhesive is resistant to typical solder mask temperatures for short periods of time. Stays firmly in place during processing and removes cleanly from typical electronic substrates even after 10 min @ 500 degree F (260 degree C)
UNSPSC Tax Code:
31201500
Manufactured By:
3M
