Part Number: 7000124216 / Vendor ID Number: 10834 / Custom:

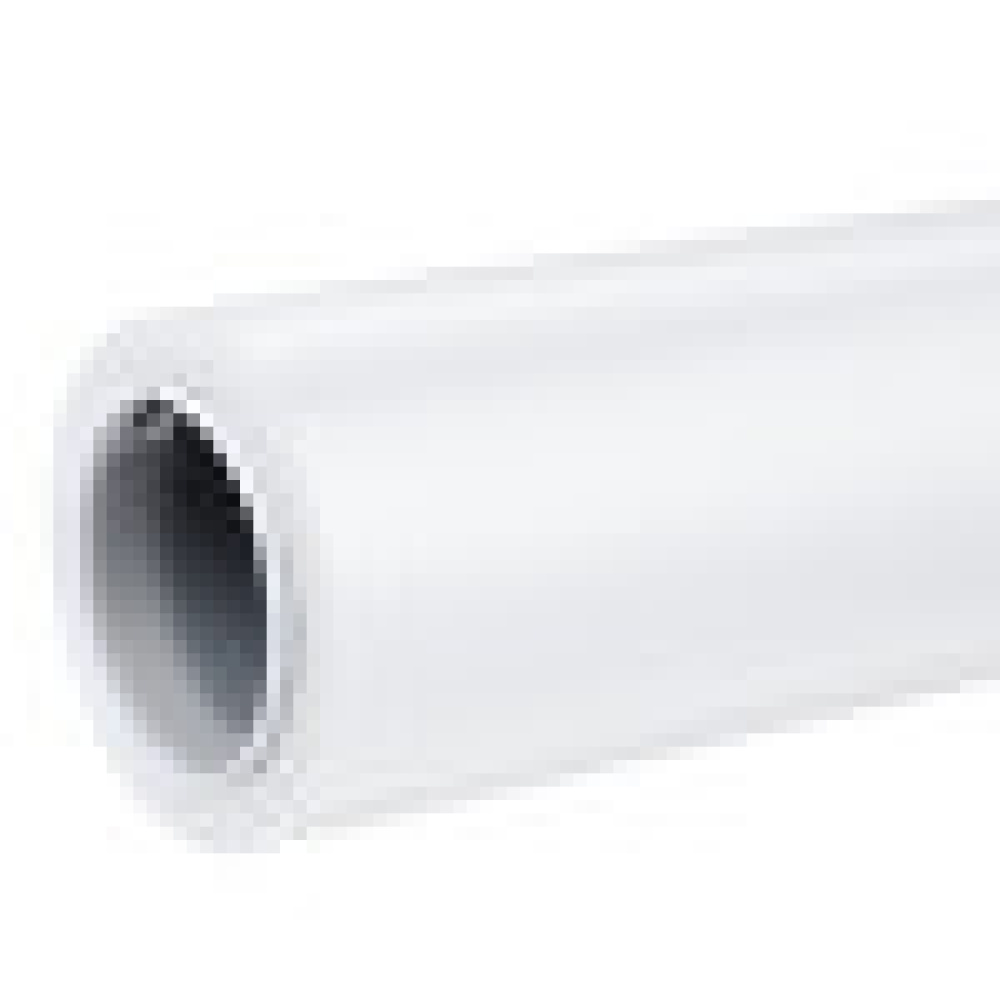

3M™ General Purpose Vinyl Tape 764, White, 49 in x 36 yd, 5 mil, 3 Roll/Case, Plastic Core

3M™ General Purpose Vinyl Tape 764, White, 49 in x 36 yd, 5 mil, 3 Roll/Case, Plastic Core
by 3M

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
764 WT 49 IN X 36 YD 3/CV PLASTIC CORE
3M™ General Purpose Vinyl and Hazard Marking Tapes 764 are the cost-effective choice for a variety of safety marking and color coding applications where you don’t see tough conditions or the need for long term clean removal. Conformability, instant adhesion and easy unwind make these tapes ideal for marking equipment, walls and pipes. Designed with unique stretch properties, this vinyl tape conforms to rough, irregular, curved and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive offers quick stick and excellent holding strength on many substrates. It also maintains its color when exposed to abrasion, wear and many solvents. Using 3M™ Vinyl 764 Tape is a faster, more versatile and less costly option than painting, which often requires ventilation and time-consuming prep and clean-up processes. Recommended applications include floor marking; general purpose holding and bundling; color coding; marking of parts or machines; temporary protection of parts, equipment or products from abrasion; and decorating.
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Info & Guides
Document
Document
Data Sheet
Brochure
AIS (Article Information Sheet)
Technical Details
Details
Adhesive Type:
Rubber
Application:
General Use Vinyl
Backing Material:
PVC
Backing Thickness (Imperial):
4.0 mil
Backing Thickness (Metric):
0.1 mm
Base - Billing Unit:
ROL
Base - Item Quantity:
1
Base - Metric Gross Weight:
10.478 KG
Base - Metric Height Dimension:
13.299 CM
Base - Metric Length Dimension:
133.985 CM
Base - Metric Width Dimension:
13.3 CM
Base - Unit:
ROL
Brand:
3M™
Catalog Number:
764
Country of Origin:
Taiwan
ECCN:
EAR99
Global Product Hierarchy:
Tapes > Vinyl Tapes
Harmonized Tariff Schedule Nbr:
3919905060
Keywords:
3M, General Purpose Vinyl Tape, Hazard Marking Tape, Safety Marking, Color Coding, Conformability, Instant Adhesion, Easy Unwind, Marking Equipment, Marking Walls, Marking Pipes, Stretch Properties, Vinyl Tape, Rubber Adhesive, Quick Stick, Excellent Holdi
Legacy SKU:
70006403466
Maximum Operating Temperature (Celsius):
29.0 Degree Celsius
Maximum Operating Temperature (Fahrenheit):
85.0 Degree Fahrenheit
Minimum Operating Temperature (Celsius):
16.0 Degree Celsius
Minimum Operating Temperature (Fahrenheit):
60.0 Degree Fahrenheit
Overall Height (Imperial):
5.0 mil
Overall Height (Metric):
0.1 mm
Overall Length (Imperial):
36.0 yd
Overall Length (Metric):
32.9 m
Overall Thickness (Imperial):
5.0 mil
Overall Width (Imperial):
49.0 in
Overall Width (Metric):
124.5 cm
Pallet - Billing Unit:
ROL
Pallet - Customary Cubic Dimension:
70787.54314988945 ci
Pallet - Customary Gross Weight:
1022.9448965378319 lbs
Pallet - Customary Height Dimension:
40.15748031496063 in
Pallet - Customary Length Dimension:
53.93700787401575 in
Pallet - Customary Net Weight:
627.0740400681784 lbs
Pallet - Customary Width Dimension:
32.67716535433071 in
Pallet - Item Quantity:
36
Pallet - Item Unit:
RLS
Pallet - Metric Cubic Dimension:
1.16 M3
Pallet - Metric Height Dimension:
1.02 M
Pallet - Metric Length Dimension:
1.37 M
Pallet - Metric Net Weight:
284.436 KG
Pallet - Metric Width Dimension:
0.83 M
Pallet - Pallet Layer Quantity:
6
Pallet - Previous Packaging Level Quantity:
12
Pallet - Previous Packaging Level Unit:
BOX
Pallet - Shipping Container Per Layer Quantity:
2
Pallet - Total Unit Quantity:
36
Pallet - Unit:
PAL
Part number:
764
Product Color:
White
Product Form:
Roll
Return Policy Description:
0-30d:0%;31-180:15%;>180:no return
SAP ID:
7000124216
SAP Shelf Life In Days:
547
Shipper - Billing Unit:
ROL
Shipper - Customary Cubic Dimension:
5200.931661705843 ci
Shipper - Customary Gross Weight:
80.37392692474081 lbs
Shipper - Customary Height Dimension:
5.866141732283465 in
Shipper - Customary Length Dimension:
54.13385826771653 in
Shipper - Customary Net Weight:
52.25617000568153 lbs
Shipper - Customary Width Dimension:
16.37795275590551 in
Shipper - Item Quantity:
3
Shipper - Item Unit:
RLS
Shipper - Metric Cubic Dimension:
85228.0 CCM
Shipper - Metric Height Dimension:
14.9 CM
Shipper - Metric Length Dimension:
137.5 CM
Shipper - Metric Net Weight:
23.703 KG
Shipper - Metric Weight:
36.457 KG
Shipper - Metric Width Dimension:
41.6 CM
Shipper - Previous Packaging Level Quantity:
3
Shipper - Previous Packaging Level Unit:
RLS
Shipper - Total Unit Quantity:
3
Shipper - Unit:
CS
Tensile Strength (Imperial):
13.0 lb/in
Tensile Strength (Metric):
228.0 N/100mm
Total Tape Thickness without Liner (Imperial):
5.0 mil
Total Tape Thickness without Liner (Metric):
0.125 mm
Unit of Use - Billing Unit:
ROL
Unit of Use - Customary Gross Weight:
23.10003583173147 lbs
Unit of Use - Customary Height Dimension:
5.235826771653543 in
Unit of Use - Customary Length Dimension:
52.75 in
Unit of Use - Customary Net Weight:
17.418723335227178 lbs
Unit of Use - Customary Width Dimension:
5.2362204724409445 in
Unit of Use - Item Quantity:
1
Unit of Use - Item Unit:
RLS
Unit of Use - Metric Cubic Dimension:
0.031 YD3
Unit of Use - Metric Height Dimension:
13.299 CM
Unit of Use - Metric Length Dimension:
133.985 CM
Unit of Use - Metric Net Weight:
7.901 KG
Unit of Use - Metric Width Dimension:
13.3 CM
Unit of Use - Previous Packaging Level Quantity:
1
Unit of Use - Total Unit Quantity:
1
Unit of Use - Unit:
ROL
Unnamed: 108:
ECONOMICAL FLOOR MARKING: Cost-effective option for color coding and safety marking applications VIVID COLOR: A wide variety of colors helps markup floors and protect surfaces with color-coded efficiency HIGH CONFORMABILITY: Strong, flexible backing is ide
UNSPSC Tax Code:
31201500
Videos:
https://multimedia.3m.com/mws/media/1391913O/3m-floor-and-safety-marking-tape-764.mp
Manufactured By:
3M
