Part Number: 7010398764 / Vendor ID Number: 10834 / Custom:

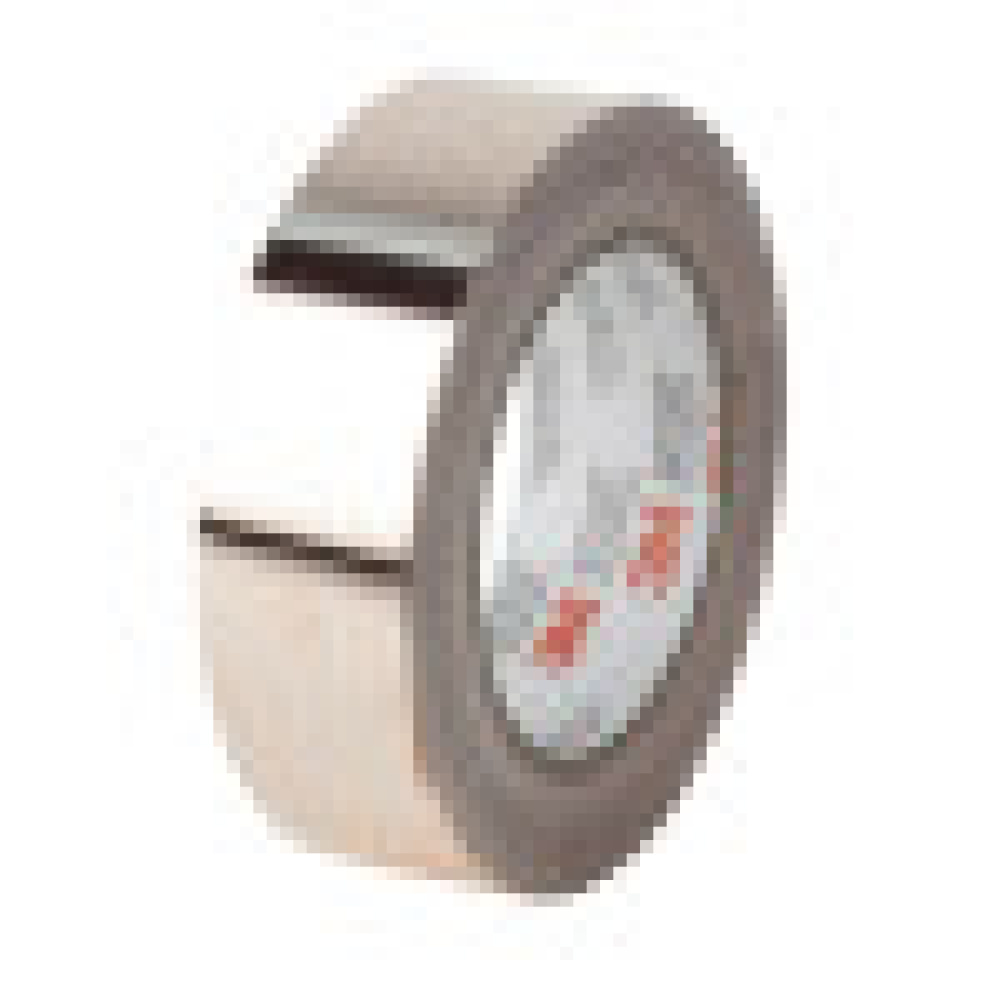

3M™ EMI Copper Foil Shielding Tape 1194, 1/2 in x 36 yd (12,70 mm x 33 m), 18 per case

3M™ EMI Copper Foil Shielding Tape 1194, 1/2 in x 36 yd (12,70 mm x 33 m), 18 per case
by 3M

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
1194 TAPE 1/2 X 36 YD BULK 3" PAPER CORE
3M™ Copper Foil EMI Shielding Tape 1194 is a 2.6 mil thick acrylic adhesive shielding tape. This flame retardant tape is suitable for applications that require grounding, EMI shielding and economical, electrical bonding. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Info & Guides
Document
Data Sheet
Brochure
Technical Details
Details
Adhesive Type:
Acrylic
Backing (Carrier) Material:
Copper Foil
Backing (Carrier) Thickness (Imperial):
2.8 mil
Backing (Carrier) Thickness (Metric):
0.071 mm
Base - Billing Unit:
ROL
Base - Item Quantity:
1.0
Base - Metric Gross Weight:
212.735 G
Base - Metric Height Dimension:
127.0 MM
Base - Metric Length Dimension:
12.7 MM
Base - Metric Width Dimension:
127.0 MM
Base - Unit:
ROL
Brand:
3M™
Catalog Number:
1194-1/2"X36YD
Country of Origin:
Taiwan
ECCN:
EAR99
Global Product Hierarchy:
Tapes > Foil Tapes > Copper Tapes
Harmonized Tariff Schedule Nbr:
7410110000
Legacy SKU:
80610881072
Material:
Copper Foil
Overall Length (Imperial):
36.0 yd
Overall Length (Metric):
33.0 m
Overall Width (Imperial):
0.5 in
Overall Width (Metric):
12.7 mm
Pallet - Billing Unit:
ROL
Pallet - Customary Cubic Dimension:
92736.00200743708 ci
Pallet - Customary Gross Weight:
999.99918428963 lbs
Pallet - Customary Height Dimension:
46.0 in
Pallet - Customary Length Dimension:
48.0 in
Pallet - Customary Net Weight:
844.1500019058963 lbs
Pallet - Customary Width Dimension:
42.0 in
Pallet - Item Quantity:
1800.0
Pallet - Item Unit:
RLS
Pallet - Metric Cubic Dimension:
1519670.8 CCM
Pallet - Metric Height Dimension:
116.84 CM
Pallet - Metric Length Dimension:
121.92 CM
Pallet - Metric Net Weight:
382.9 KG
Pallet - Metric Width Dimension:
106.68 CM
Pallet - Pallet Layer Quantity:
4.0
Pallet - Previous Packaging Level Quantity:
100.0
Pallet - Previous Packaging Level Unit:
BOX
Pallet - Shipping Container Per Layer Quantity:
25.0
Pallet - Total Unit Quantity:
1800.0
Pallet - Unit:
PAL
Part number:
1194-1/2"X36YD
Product Color:
Copper
SAP ID:
7010398764
SAP Shelf Life In Days:
1825
Shipper - Billing Unit:
ROL
Shipper - Customary Cubic Dimension:
734.6616819217891 ci
Shipper - Customary Gross Weight:
9.649633215832091 lbs
Shipper - Customary Height Dimension:
10.25 in
Shipper - Customary Length Dimension:
8.68779527559055 in
Shipper - Customary Net Weight:
8.441500019058962 lbs
Shipper - Customary Width Dimension:
8.25 in
Shipper - Item Quantity:
18.0
Shipper - Item Unit:
RLS
Shipper - Metric Cubic Dimension:
12038.948 CCM
Shipper - Metric Height Dimension:
26.035 CM
Shipper - Metric Length Dimension:
22.067 CM
Shipper - Metric Net Weight:
3.829 KG
Shipper - Metric Weight:
4.377 KG
Shipper - Metric Width Dimension:
20.955 CM
Shipper - Previous Packaging Level Quantity:
18.0
Shipper - Previous Packaging Level Unit:
RLS
Shipper - Total Unit Quantity:
18.0
Shipper - Unit:
CS
Specifications Met:
RoHS 2011/65/EU
Unit of Use - Billing Unit:
ROL
Unit of Use - Customary Cubic Dimension:
12.509867539420119 ci
Unit of Use - Customary Gross Weight:
0.4690003934589993 lbs
Unit of Use - Customary Height Dimension:
5.0 in
Unit of Use - Customary Length Dimension:
0.5 in
Unit of Use - Customary Net Weight:
0.46897173336491527 lbs
Unit of Use - Customary Width Dimension:
5.0 in
Unit of Use - Item Quantity:
1.0
Unit of Use - Item Unit:
RLS
Unit of Use - Metric Cubic Dimension:
0.205 CDM
Unit of Use - Metric Height Dimension:
127.0 MM
Unit of Use - Metric Length Dimension:
12.7 MM
Unit of Use - Metric Net Weight:
212.722 G
Unit of Use - Metric Width Dimension:
127.0 MM
Unit of Use - Previous Packaging Level Quantity:
1.0
Unit of Use - Total Unit Quantity:
1.0
Unit of Use - Unit:
ROL
Unnamed: 108:
Non-conductive, acrylic adhesive offers optimized adherence Removable liner for easy die-cutting and handling Flame-retardant and suitable for grounding and EMI shielding in equipment, components and shielded rooms Rated for 600V applications UL Listed and
UNSPSC Tax Code:
31200000
